SMB-01L - Professional Monitoring Headphones [PHONON]
SMB-01L - Professional Monitoring Headphones [PHONON]
- Phonon’s Flagship, high-end studio monitoring headphones
- The innovative 50mm driver unit features a powerful magnetic circuit and a diaphragm with a Free Edge structure
- Exchangeable ear plates for enclosed-dynamic and semi-open type
- 4-wire LR independent ground connection detachable cable and high-quality comfort sheepskin ear pads
- Made in Japan
The Sound of Large Studio Monitors on Headphones
The SMB-01L utilizes a 50mm diameter driver unit, further enhancing PHONON’s signature natural ultra-low range bass-monitoring capabilities. The high-end unit features a powerful magnetic circuit and a diaphragm with a “free edge” structure that brings a quantum improvement to the reproduction of raw sounds, increasing presence and achieving wide high-resolution dynamic frequency range playback.
With PHONON’s unique tuning method, the SMB-01L achieves a stunning acoustic balance and a sound that resembles that of large high-end audio monitoring systems.
The Revolutionary 50mm Driver Unit
The SMB-01L utilizes FOSTER Electric’s MT050A 50mm high-end driver unit. The driver’s “bio-dyna diaphragm,” made of bio-cellulose material, models the sound structure of a large speaker and features a “free-edge” structure that allows for a higher resolution and dynamic range.
The Switchable Side Plates
The switchable plate that lets you choose between a closed and a semi-open design. You can enjoy both closed sounds with more density and semi-open sound with a sense of liberation in one unit

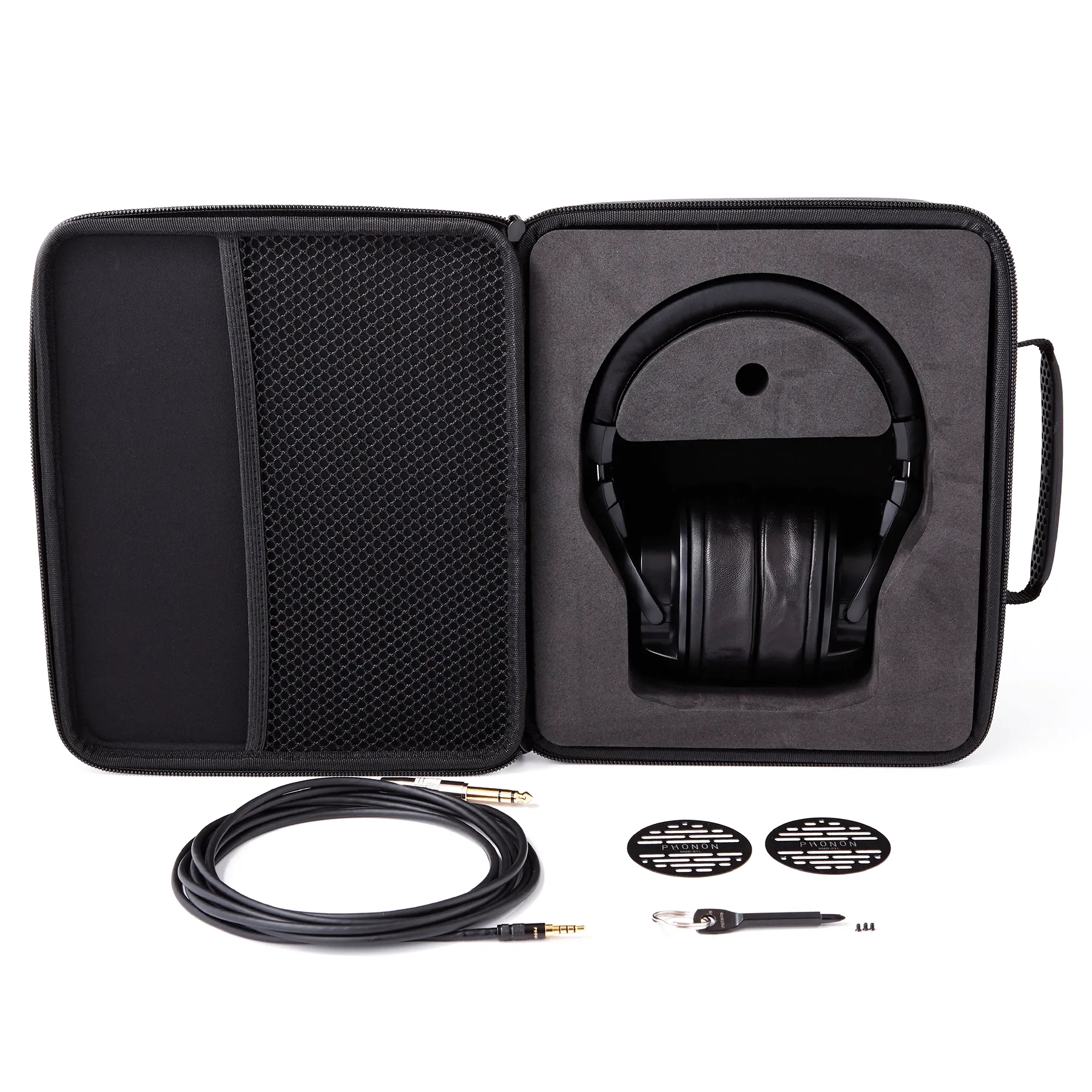

WHAT'S IN THE PACKAGE
・1 detachable Cable 3 m
・1 transport case
・1 pair of semi-open side panel
・1 Screwdriver and 3 spare screws
SPECIFICATIONS
Type | Enclosed dynamic / Semi-open |
---|---|
Driver | Φ50mm |
Sensitivity | 102dB/mW |
Frequency response | 10~40,000Hz |
Maximum Power | 1,000mW |
Impedance | 32Ω |
Weight | 343g (Excluding wires) |

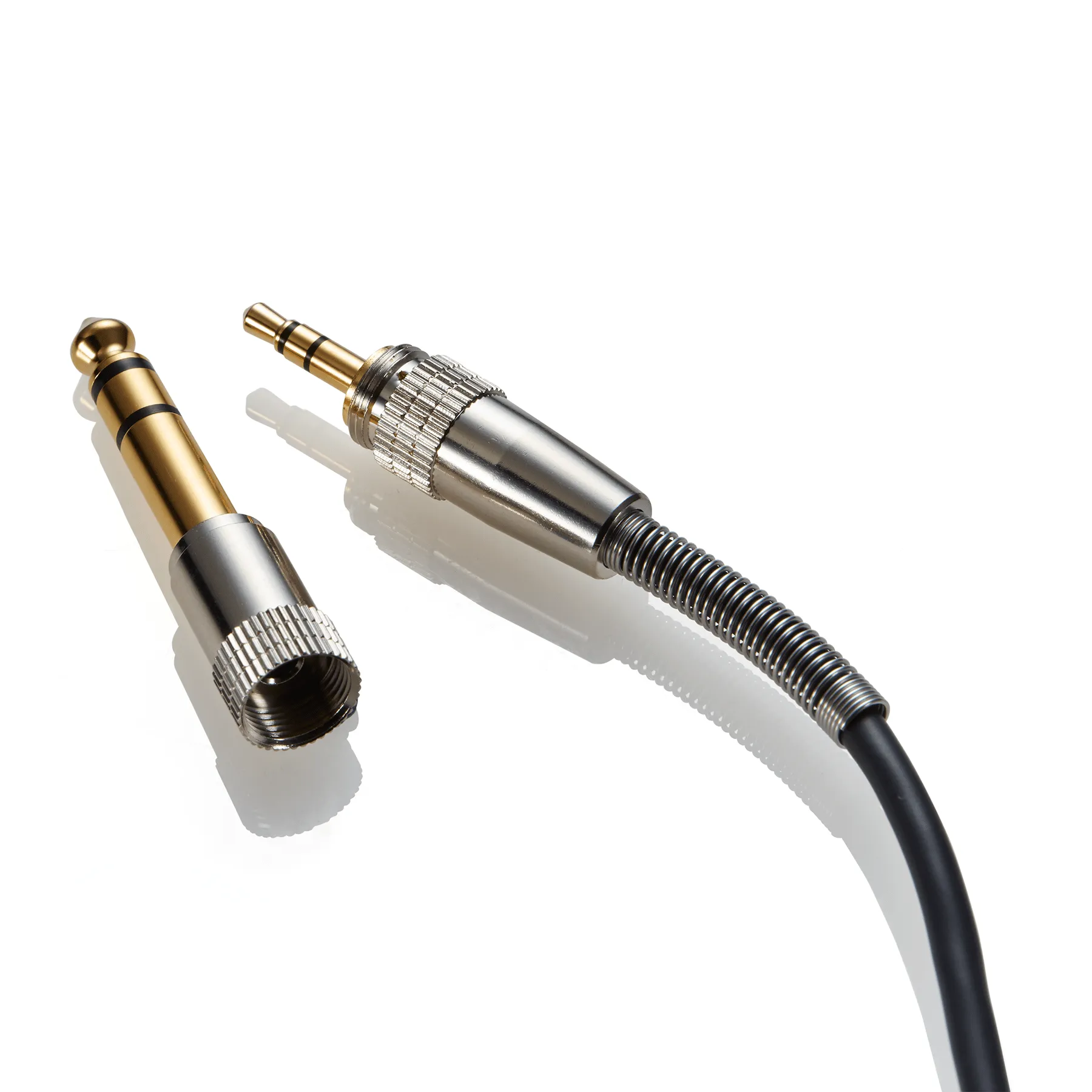

Plug | Φ6.3 / Φ3.5mm gold-plated stereo 2 ways plug |

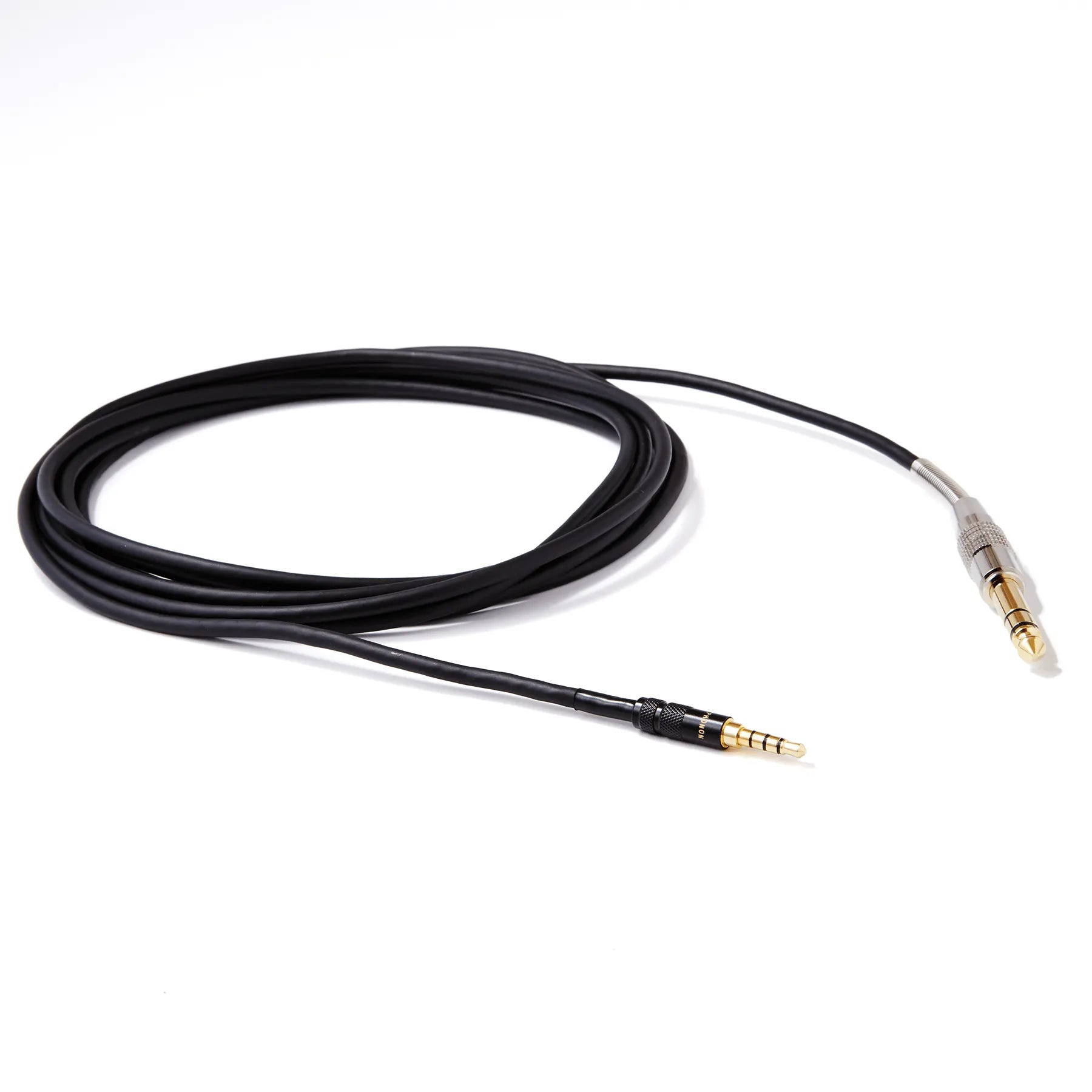

Cable | Detachable 3m (4 wires-type L/R independent ground wire connection) |
